Tiandy 8MP Polar Day Panoramic Camera Review (TC-C382V): 180° Dual-Lens Ultra Low-Light Surveillance Tested

For facility directors, security administrators, and operations managers across Karachi, securing wide-open perimeters has traditionally been an expensive, frustrating compromise. Whether monitoring a 2-acre textile factory yard in the Korangi Industrial Area, a container freight depot at Port Qasim, a sprawling manufacturing plant in S.I.T.E., or an open livestock compound in Malir/Gadap, standard IP CCTV systems present two chronic pain points:

1. The Multi-Camera Blind Spot Dilemma: Standard fixed bullet or dome cameras possess an 80° to 95° Field of View (FOV). Securing a 180-degree compound boundary requires three separate cameras, three outdoor Cat6 cable runs, three switch PoE ports, three NVR recording channels, and multiple junction boxes. Operators must constantly flip between camera feeds, losing sight of subjects crossing boundary seams.

2. Nighttime Blindness & False Alarms: Standard infrared (IR) night vision strips all color, converting scenes into washed-out monochrome where car colors, clothing details, and vehicle make/model become unrecognizable. Meanwhile, conventional "full-color" cameras blast blinding white LED spotlights that disturb neighbors, create glare on metal gates, and overexpose vehicle license plates.

Enter the Tiandy TC-C382V (Spec: W/E/Y/S/H/2.8mm) 8MP Fixed Polar Day Panoramic Camera. Equipped with dual 1/2.7" progressive scan CMOS sensors, dual F1.0 super-aperture lenses, and proprietary Polar Day Technology, this camera outputs a seamless 180° panoramic view at 4640 × 1728 (8MP) resolution while maintaining full-color imaging at light levels down to 0.0001 Lux without reliance on glaring floodlights.

At Arbre IT Support & Solutions, we field-tested this camera in local Karachi conditions. Below is our comprehensive engineering review, real-world night vision analysis, and deployment architecture.

1. Real-World Field Test: iPhone Ground Truth vs. Tiandy 21:48 PM Night Capture

To objectively evaluate Tiandy's Polar Day low-light claims, our engineering team conducted an empirical field test on an open compound in Karachi (Malir/Gadap perimeter). The test environment featured zero commercial floodlights or high-power sodium streetlights — only ambient, moonless night darkness.

To document the true ambient light conditions, our technician simultaneously recorded a ground-truth video using an iPhone from the exact same observation deck.

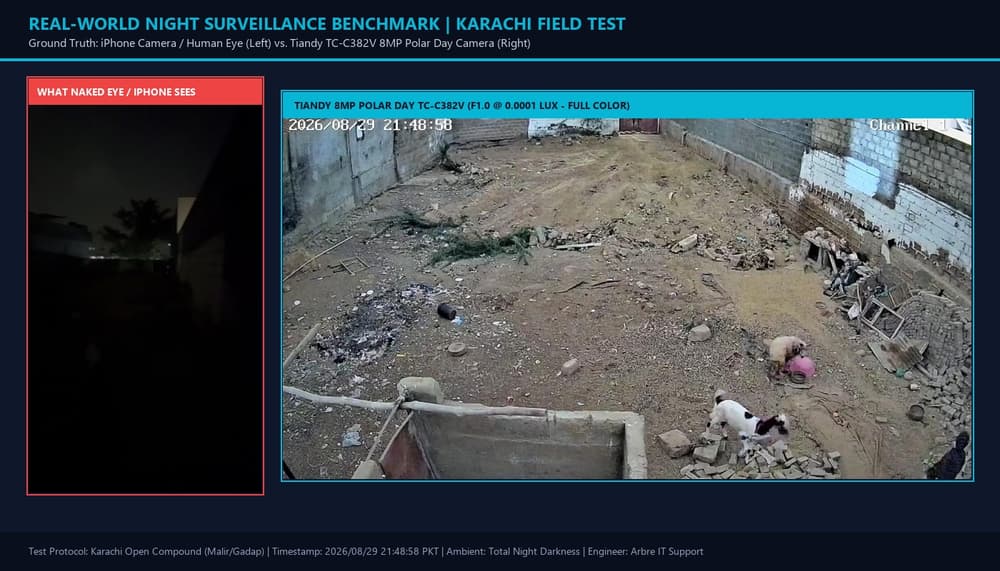

Here is the direct side-by-side comparison between what the human eye / smartphone saw versus what the Tiandy TC-C382V Polar Day camera delivered at 9:48 PM at night (21:48:58 PKT):

!Real-World Night Surveillance Benchmark: iPhone Camera Ground Truth vs Tiandy TC-C382V 8MP Polar Day Panoramic Camera

Empirical Field Analysis:

• Left Panel (iPhone / Naked Human Eye): Pitch black. As confirmed by the ground-truth recording, the human eye and the smartphone sensor cannot resolve the ground, the masonry rubble, the animals, or the perimeter wall. Only a distant tree canopy silhouette against the overcast Karachi night sky is vaguely perceptible.
• Right Panel (Tiandy TC-C382V 8MP Polar Day): Instantaneous, daytime-grade visual intelligence. The camera resolves the natural earth tone of the soil, the bright red plastic feed bucket, the distinct black-and-white markings of the livestock, and the brown rusted gate over 40 meters in the background.
• Uniform Illumination & Zero Glare: Notice there are no blown-out white halos or central hot-spots typical of conventional spotlight cameras. The 180° panoramic field remains uniformly lit from edge to edge.
• Micro-Structural Clarity: At 30+ meters back toward the perimeter wall, individual cement blocks, stacked bricks, and conduit lines running along the left masonry wall remain clearly identifiable for security auditing.

📱 Ground-Truth Video Evidence:

The original on-site verification video recorded from the technician's iPhone (polarday.mov) is archived for client inspection. You can view the raw footage demonstrating total pitch darkness:

🔗 Download / Stream Ground-Truth iPhone Field Test Video (MP4)

2. Optical Architecture: Dual Lenses & Hardware-Level Stitching

Unlike fisheye cameras that capture a spherical image requiring heavy software dewarping (which drastically degrades corner resolution and curves straight walls), the Tiandy TC-C382V uses dual independent optical modules engineered onto a single rigid chassis.

How the Optical Stitching Operates

Inside the camera's image signal processor (ISP), the two 4MP video streams are merged using hardware-accelerated feature matching and edge-blending algorithms. The center overlap zone is dynamically aligned in real time, eliminating the seam or distortion artifact commonly seen in cheaper multi-sensor cameras. The result is a continuous 180° view delivered as a single RTSP stream to your NVR or VMS.

3. The Science Behind "Polar Day": Why F1.0 Changes Everything

In optics, the amount of light entering a camera sensor is inversely proportional to the square of the f-number (Light Gathering Power ∝ 1 / F²). Most standard commercial CCTV cameras operate at F1.6 or F2.0. Comparing an F1.0 aperture to a standard F2.0 lens:

• (2.0 / 1.0)² = 4× More Light (400% Increase in Photons Captured)

The Tiandy TC-C382V collects 400% more photons than a standard security camera. Combined with a back-illuminated sensor and Tiandy's 3D Digital Noise Reduction (3D DNR), the camera maintains full-color video down to 0.0001 Lux — equivalent to the ambient starlight of an overcast night.

Why This Outperforms Traditional Solutions:

1. No "White Light Pollution": Many residential and commercial clients dislike full-color cameras with powerful LED floodlights because they disturb nearby residential zones and draw insect swarms directly to the lens glass. The TC-C382V captures crisp color using ambient photons, only engaging its 3 soft warm LEDs if absolute total blackness (0 Lux) is encountered.

2. True WDR (120 dB) for Karachi Sunlight: Outdoor cameras in Pakistan face intense solar backlighting during afternoons. The 120 dB True WDR prevents silhouetting when monitoring gates where direct sunlight hits the camera while subjects stand in deep building shade.

4. DORI Distance Coverage: EN 62676-4 Standard

The international standard EN 62676-4 defines the exact pixel density required for specific surveillance tasks. With its 4640-pixel horizontal width, the TC-C382V delivers exceptional situational awareness:

The Cost Equation: 1 Camera vs. 3 Cameras

In a standard 180° perimeter installation:

• Conventional Setup: 3 × 4MP Bullet Cameras + 3 × Cat6 Cable Drops (90m each) + 3 × PoE Switch Ports + 3 × NVR Channel Licenses + 3 × Outdoor Junction Boxes.
• Tiandy TC-C382V Setup: 1 × Panoramic Camera + 1 × Cat6 Cable Drop + 1 × PoE Port + 1 × NVR Channel License + 1 × Junction Box.

Net Savings: You eliminate 66% of field cabling, labor, and switch infrastructure while gaining a continuous seamless video feed with zero blind spots.

5. Network, Bandwidth & Storage: S+265 Smart Codec

Streaming 8 megapixels (4640 × 1728) at 25 frames per second would saturate network bandwidth if encoded in obsolete H.264.

Tiandy addresses this with its proprietary S+265 Smart Compression Codec. S+265 analyzes static background areas (like walls and ground) and allocates high bitrate only to moving regions (people, vehicles, animals).

Bandwidth & Storage Consumption (24/7 Continuous Recording)

With S+265, an enterprise can comfortably record 30 days of uninterrupted 8MP panoramic surveillance on a single 2TB WD Purple surveillance hard drive.

6. Engineered for Karachi's Harsh Industrial Environment

Outdoor electronics deployed in Karachi endure severe operating challenges: coastal salt-laden sea air, extreme 45°C summer heat, generator switchover voltage spikes, and sudden monsoon dust storms.

The TC-C382V is built with industrial-grade resilience:

• IP67 Weatherproof Ingress: Fully sealed against airborne dust, cement powder, and torrential monsoon downpours.
• TVS 6000V Lightning & Power Surge Protection: Protects internal optical circuitry from inductive surges caused by nearby lightning strikes or abrupt K-Electric grid/generator switchovers.
• Extreme Thermal Tolerance: Operational between -40°C and +65°C with humidity up to 95% non-condensing.
• Power Flexibility: Standard PoE (IEEE 802.3af, max 10.5W) over Cat6 cable, or DC 12V ± 25% with wide voltage tolerance.

7. Edge Audio, Alarm I/O & Failover Storage

Unlike basic security cameras, the TC-C382V incorporates complete on-board audiovisual integration:

1. Built-in High-Sensitivity Microphone: Features a wide dynamic frequency response (100 Hz to 8 kHz) with noise-filtering algorithms. It captures ambient sounds, perimeter gate bangs, and verbal exchanges without requiring external microphones. Supports G.711A/U and AAC audio encoding.

2. Audio & Alarm Interfaces:

• 1-channel Audio Input & 1-channel Audio Output (enables two-way intercom or connection to an external horn speaker).
• 1-channel Alarm Input & 1-channel Alarm Output (can trigger automated strobe lights, sirens, or trip an electric fence relay upon intrusion).

3. MicroSD Card Slot (Up to 512GB): Enables local on-camera edge recording if the central NVR network link goes down, automatically synchronizing recorded footage once the link is restored.

8. Ideal Deployment Scenarios in Pakistan

Based on our deployment experience at Arbre IT, the Tiandy TC-C382V is ideal for:

• Factory & Warehouse Perimeters: Positioned on central boundary light poles in Korangi, Landhi, SITE, or Hub to provide complete fence-to-fence coverage.
• Logistics & Container Depots: Monitoring heavy trailer turnaround yards, loading docks, and weighbridges at Port Qasim and Kemari.
• Commercial Shopping Malls & Corporate Frontages: Wide entrance plazas, open-air parking lots, and building facades where aesthetics preclude mounting multiple clunky bullet cameras.
• Farms, Dairies & Livestock Pens: Large open fields and cattle sheds (as shown in our field test) where night visibility in dirt conditions is vital to prevent theft.
• Educational Campuses & Hospitals: Main athletic grounds, student transit zones, and emergency parking bays.

Engineering Verdict & How to Order

The Tiandy TC-C382V 8MP Fixed Polar Day Panoramic Camera is one of the most capable wide-angle surveillance devices on the market in 2026. By combining true 180° optical stitching, an F1.0 super aperture, 0.0001 Lux color night sensitivity, and S+265 bandwidth efficiency, it eliminates blind spots while drastically lowering overall cabling and hardware costs.
